81R Series Twin Cylinder Compressors
Oilless operation
All wetted aluminum parts treated for corrosion protection from moisture
Rugged motor shell construction
100 psi max. pressure

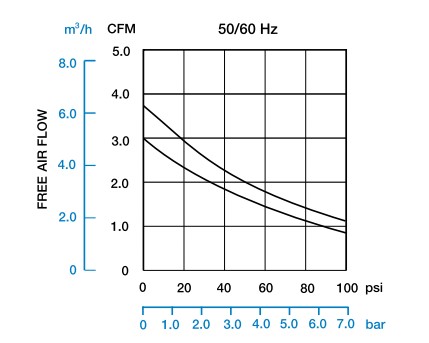

3.7 CFM open flow (60 Hz)
100 psi max. pressure
3.0 CFM open flow (50 Hz)
Pressure gauge AA806
Safety valve AP202
Filter B300A
Capacitors AT251 dry or AJ594 wet
Repair kit K934
| Model Number |
Motor | Motor Type |
RPM | HP | KW | Net Weight | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 60 Hz | 50 Hz | lb | kg | ||||||||
| 81R640-P101-H311CX | 115-60-1 | PSC | 1725 | - | 1/3 | 0.25 | 17.1 | 7.8 | |||
| 81R640-P101-H302CX | 220-240-50-1 | PSC | - | 1450 | 1/3 | 0.25 | 17.1 | 8.0 | |||
